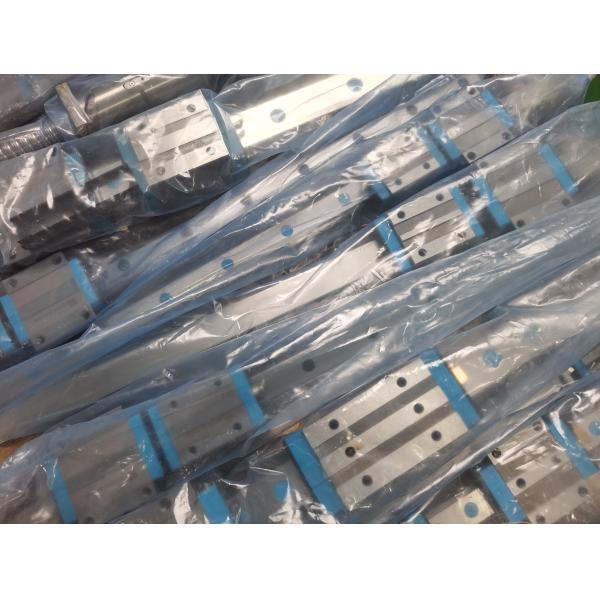

Product Description:
--Linear slide rails have been optimized with a structure design for heavy-duty precision, delivering improved load and rigidity when compared to other rails.
--This type of linear slider has beneficial load characteristics, such as the ability to align itself and absorb any assembly errors or inaccuracies of the mounting surface.
--The concept of high speed, high load, high rigidity, and high precision is becoming a growing trend within the industrial product development industry worldwide.
--Out of this concept, four-row super-load linear slides have been developed to provide high-grade performance and meet demands.
Features:
--The DF (45°-45°) combination from the circular groove can give customers Automatic self-aligning ability. It can absorb the surface deviation during installation through the elastic deformation of the steel ball and the transfer of the contact point, providing a smooth motion with high precision and stability.
--By controlling production precision, the linear slide size can remain within a certain level, and the slider has the function of a retainer to avoid the steel ball dropping off. That’s why, some series of precision is interchangeable, making customers can use the parts as they needs. Rails or sliders can be separately stored, which save a lot of storage space.
--The four-row circular groove is matched with the contact angle of 45 degrees and four rows of steel balls, which result in the ideal two-point contact structure and give the ability of resisting the load from all directions. More importantly, preloading can be applied when necessary, to enhance the rigidity.
Technical Parameters:
| Parameters | Details |
| Product Name | Linear Roller Guideways |
| Bore size | 15/20/25/30/35/45/55/65mm |
| Function | Automatic Self-aligning |
| Load type | Heavy Load/overweight Load |
| Lide rail fixing method | Locked/lockdown |
| Working temperature | Room Temperature |
| Feature | High Rigidity |
| Presicion level | C/H/P/SP/UP |
| Type | Slider Type/flange Type/quadrilateral |
| Track length | Max.4000mm |
Applications:
--Guiderail, a critical piece of industrial equipment, has seen widespread use due to the quick development of the plastic industry. Industries such as spraying equipment, CNC machine tools, machining centers, electronics, automation machinery, textile machinery, automobiles, medical equipment, printing machinery, packaging machinery, woodworking machinery, and mold opening integrate this equipment into their operations.
--Guiderail not only helps increase productivity, but also ensures quality control.
--By lowering the margin of human error while providing consistent levels of precision, Guiderail not only helps increase efficiency but also quality.
--It is able to address issues swiftly and effectively, and has been instrumental in the successful operations of many industries.
Support and Services:
Linear Roller Guideways technical support and service includes:
- Design and engineering consultation
- Installation support
- Maintenance and repair services
- Spare parts and replacement parts
- Technical training
- Customer service and technical support
